- It is applied to the manufacturing process of the bolt type and other small components.
By applying ultrasonic wave cleaning to small and complicated parts,
water molecules can be decomposed, and effective products can be produced with better.
Small
· Increase in production
· Increase in effectiveness
· Improvement in quality
· Increase in production
· Increase in effectiveness
· Improvement in quality
Expected effect
Increase in production · Increase in effectiveness · Improvement in quality

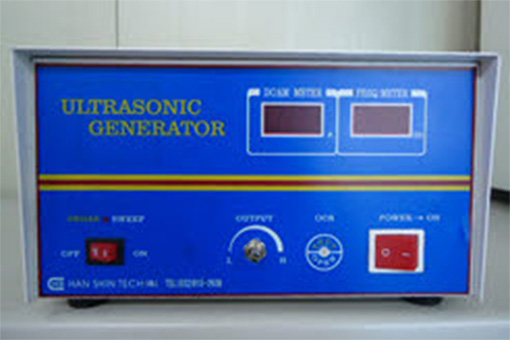

Generator
- Characteristics
- Available frequency range is from 20Khz to 220Khz, and stable output can be produced.
- Ultrasonic outputs range from 200W to 180W.
- Customizable.
Transducer
- Characteristics
- Created according to tank size.
- SUS304, SUS316L materials are used.
- Imported products are used for longevity and strength.

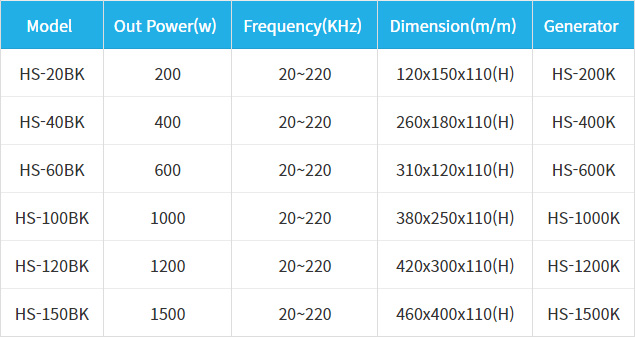

Model | Out Power(w) | Frequency(KHz) | Dimension(m/m) | Generator |
---|---|---|---|---|
HS-20BK | 200 | 20~220 | 120x150x110(H) | HS-200K |
HS-40BK | 400 | 20~220 | 260x180x110(H) | HS-400K |
HS-60BK | 600 | 20~220 | 310x120x110(H) | HS-600K |
HS-100BK | 1000 | 20~220 | 380x250x110(H) | HS-1000K |
HS-120BK | 1200 | 20~220 | 420x300x110(H) | HS-1200K |
HS-150BK | 1500 | 20~220 | 460x400x110(H) | HS-1500K |

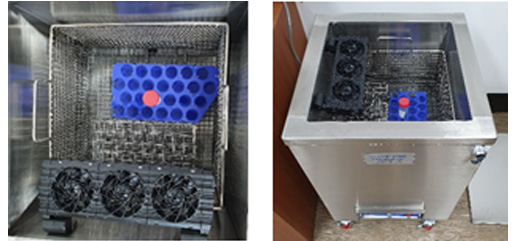

ULTRASONIC LOW TEMPERATURE EXTRACTOR
- Characteristics
- Low-temperature extraction in a short time
- Reduced processing time
- Less solvent used
- Suitable for
- Life science
- Oriental medicine
- Research centers
- Labs
- Agricultural associations
Small Cleaner – Analog
(HS-120 ~ HS-350)
- Characteristics
- It is economical because it produces less failures due to the use of a non-damageable oscillator (B.L.T.), and it delivers outstanding cleaning performance through using high vibration waves.
It is suitable for simple cleaning activities for laboratories, school laboratories, hospitals, and jewelry.
- Characteristics
- It is economical because it produces less failures due to the use of a non-damageable oscillator (B.L.T.), and it delivers outstanding cleaning performance through using high vibration waves. It is suitable for simple cleaning activities for laboratories, school laboratories, hospitals, and jewelry.

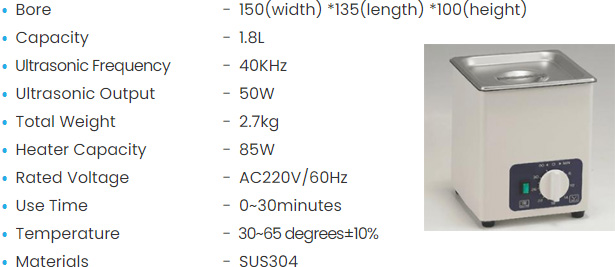

HS – 120
- Bore : 150(width) *135(length) *100(height)
- Capacity : 1.8L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 50W
- Total Weight : 2.7kg
- Heater Capacity : 85W
- Rated Voltage : AC220V/60Hz
- Use Time : 0~30minutes
- Temperature : 30~65 degrees±10%
- Materials : SUS304

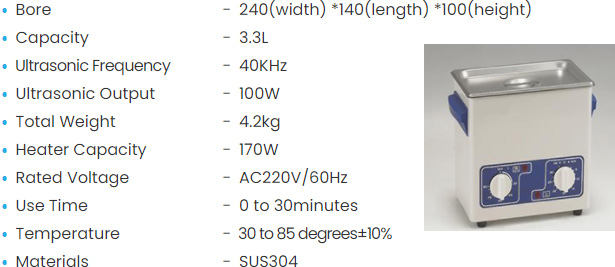

HS – 201
- Bore : 240(width) *140(length) *100(height)
- Capacity : 3.3L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 100W
- Total Weight : 4.2kg
- Heater Capacity : 110W
- Rated Voltage : AC220V/60Hz
- Use Time : 40minutes
- Temperature : 45~80 degrees±10%
- Materials : SUS304
HS – 251
- Bore : 290(width) *150(length) *150(height)
- Capacity : 6L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 150W
- Total Weight : 5.7kg
- Heater Capacity : 170W
- Rated Voltage : AC220V/60Hz
- Use Time : 40minutes
- Temperature : 40~80 degrees±10%
- Materials : SUS304
HS – 301
- Bore : 290(width) *150(length) *150(height)
- Capacity : 10L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 250W
- Total Weight : 7.2kg
- Heater Capacity : 240W
- Rated Voltage : AC220V/60Hz
- Use Time : 40minutes
- Temperature : 45~80 degrees±10%
- Materials : SUS304
HS – 351
- Bore : 500(width) *300(length) *150(height)
- Capacity : 22L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 400W
- Total Weight : 12kg
- Heater Capacity : 340W
- Rated Voltage : AC220V/60Hz
- Use Time : 40minutes
- Temperature : 40~80 degrees±10%
- Materials : SUS304
HS – 120
HS – 200

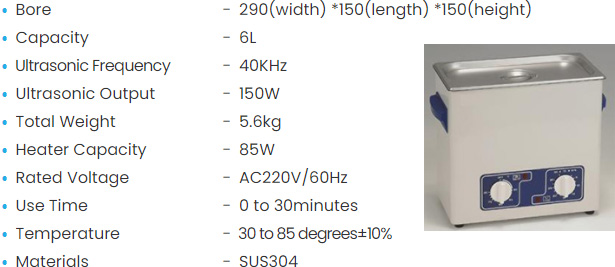

HS – 250

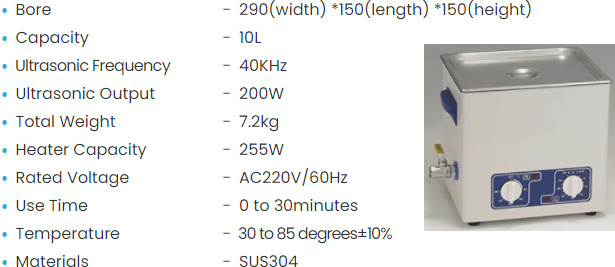

HS – 300

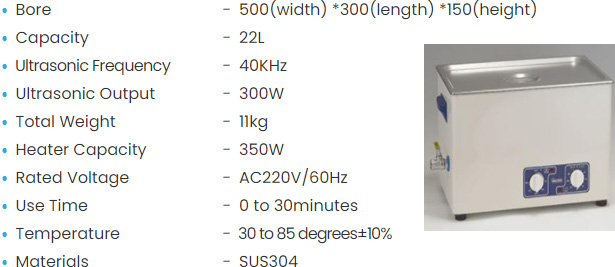

HS – 350
Small Cleaner – Digital
(HS-D250 ~ HS-D400)
- Characteristics
- It is economical because it produces less failures due to the use of a non-damageable oscillator (B.L.T.), and it delivers outstanding cleaning performance through using high vibration waves.
It is suitable for simple cleaning activities for laboratories, school laboratories, hospitals, and jewelry.
- Characteristics
- It is economical because it produces less failures due to the use of a non-damageable oscillator (B.L.T.), and it delivers outstanding cleaning performance through using high vibration waves. It is suitable for simple cleaning activities for laboratories, school laboratories, hospitals, and jewelry.

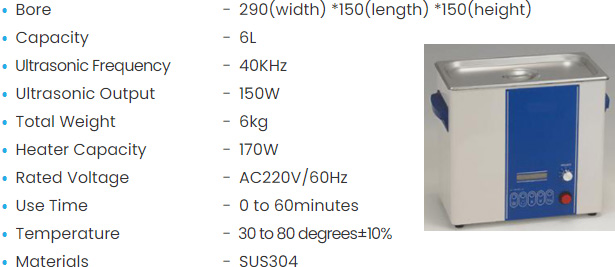

HS – D250
- Bore : 290(width) *150(length) *150(height)
- Capacity : 6L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 150W
- Total Weight : 6kg
- Heater Capacity : 170W
- Rated Voltage : AC220V/60Hz
- Use Time : 0~60minutes
- Temperature : 30~80 degrees±10%
- Materials : SUS304

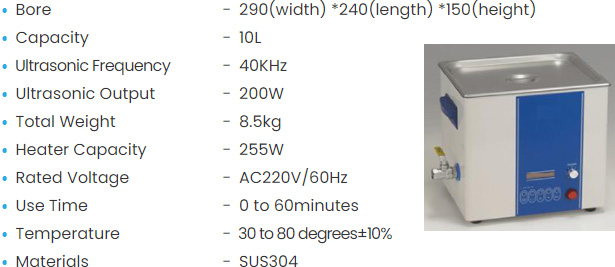

HS – D300
- Bore : 290(width) *240(length) *150(height)
- Capacity : 10L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 200W
- Total Weight : 8.5kg
- Heater Capacity : 255W
- Rated Voltage : AC220V/60Hz
- Use Time : 0~60minutes
- Temperature : 30~80 degrees±10%
- Materials : SUS304

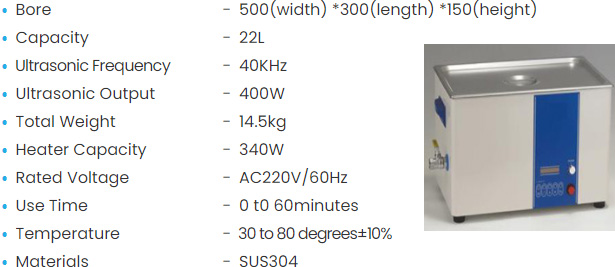

HS – D400
- Bore : 500(width) *300(length) *150(height)
- Capacity : 22L
- Ultrasonic Frequency : 40KHz
- Ultrasonic Output : 400W
- Total Weight : 14.5kg
- Heater Capacity : 340W
- Rated Voltage : AC220V/60Hz
- Use Time : 0~60minutes
- Temperature : 30~80 degrees±10%
- Materials : SUS304
